Part 1: Configure VLANs
Part 2: Configure Rapid Spanning Tree PVST+ Load balancing
Part 3: Configure PortFast and BPDU Guard
Download file pka Configuring Rapid PVST+

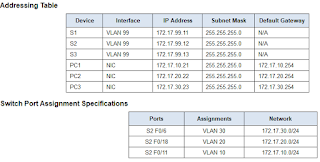

Setting CLI Pada Semua Switch
1. Switch S1
S1>en
S1#conf t
S1(config)#vlan 10
S1(config-vlan)#vlan 20
S1(config-vlan)#vlan 30
S1(config-vlan)#vlan 40
S1(config-vlan)#vlan 50
S1(config-vlan)#vlan 60
S1(config-vlan)#vlan 70
S1(config-vlan)#vlan 80
S1(config-vlan)#vlan 99
S1(config-vlan)#int range f0/1-4
S1(config-if-range)#switchport mode trunk
S1(config-if-range)#switchport trunk native vlan 99
S1(config)#int vlan 99
S1(config-if)#ip add 172.17.99.11 255.255.255.0
S1(config-if)#no shut
S1(config)#spanning-tree mode rapid-pvst
S1(config)#spanning-tree vlan 1,10,30,50,70 root primary
2. Switch S2
S2(config)#int fa0/11
S2(config-if)#switchport mode access
S2(config-if)#switchport access vlan 10
S2(config-if)#spanning-tree bpduguard enable
S2(config-if)#spanning-tree portfast
S2(config-if)#no shut
S2(config)#int fa0/18
S2(config-if)#switchport mode access
S2(config-if)#switchport access vlan 20
S2(config-if)#spanning-tree bpduguard enable
S2(config-if)#spanning-tree portfast
S2(config-if)#no shut
S2(config)#int fa0/6
S2(config-if)#switchport mode access
S2(config-if)#switchport access vlan 30
S2(config-if)#spanning-tree bpduguard enable
S2(config-if)#spanning-tree portfast
S2(config-if)#no shut
S2(config-if)#vlan 10
S2(config-vlan)#vlan 20
S2(config-vlan)#vlan 30
S2(config-vlan)#vlan 40
S2(config-vlan)#vlan 50
S2(config-vlan)#vlan 60
S2(config-vlan)#vlan 70
S2(config-vlan)#vlan 80
S2(config-vlan)#vlan 99
S2(config-vlan)#ex
S2(config)#int vlan 99
S2(config-if)#ip add 172.17.99.12 255.255.255.0
S2(config-if)#ex
S2(config)#int range f0/1-4
S2(config-if-range)#switchport mode trunk
S2(config-if-range)#switchport trunk native vlan 99
S2(config)#spanning-tree vlan 1,10,20,30,40,50,60,70,80,99 root secondary
S2(config)#spanning-tree mode rapid-pvst
S2(config-if)#no shut
3. Switch S3
S3>en
S3#conf t
S3(config)#vlan 10
S3(config-vlan)#vlan 20
S3(config-vlan)#vlan 30
S3(config-vlan)#vlan 40
S3(config-vlan)#vlan 50
S3(config-vlan)#vlan 60
S3(config-vlan)#vlan 70
S3(config-vlan)#vlan 80
S3(config-vlan)#vlan 99
S3(config-vlan)#int range f0/1-4
S3(config-if-range)#switchport mode trunk
S3(config-if-range)#switchport trunk native vlan 99
S3(config)#spanning-tree mode rapid-pvst
S3(config)#spanning-tree vlan 20,40,60,80,99 root primary
S3(config)#int vlan 99
S3(config-if)#ip address 172.17.99.13 255.255.255.0
S3(config-if)#no shut

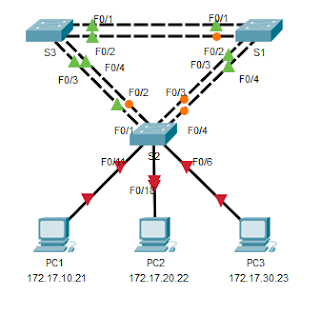

Konfigurasi Jaringan Rapid-PVST+ yang telah berjalan
